Jasper Technology

Rack Solution

Net Weight	94.04 kg / 207.60 lbs
Maximum Height	2092.70 mm / 82.38 in
Maximum Width	598.00 mm / 23.54 in
Maximum Depth	1000.00 mm / 39.37 in
Net Depth with Stabilizing Fee	1000.00 mm / 39.37 in
Shipping Weight	121.85 kg / 268.63 lbs
Shipping Height	2230.00 mm / 87.79 in
Shipping Width	640.00 mm / 25.19 in
Shipping Depth	1030.00 mm / 40.55 in
Weight Capacity (static load)	2500.00 kg / 5500 lbs
Weight Capacity (dynamic load):	2500.00 kg / 5500 lbs
Minimum Mounting Depth	100.00 mm / 3.93 in
Rack Height	42U
Color	Black
Units per Pallet	1
Vertical Posts	16 gauge
Front Door	18 gauge
Rear Door	18 gauge
Roof	x
EIA Mounting Rails	14 gauge
Side Panel	18 gauge

Net Weight	117.44 kg / 258.91 lbs
Maximum Height	2092.70 mm / 82.38 in
Maximum Width	598.00 mm / 23.54 in
Maximum Depth	1225.00 mm / 48.22 in
Net Depth with Stabilizing Fee	1225.00 mm / 48.22 in
Shipping Weight	150.18 kg / 331.08 lbs
Shipping Height	2230.00 mm / 87.79 in
Shipping Width	640.00 mm / 25.19 in
Shipping Depth	1260.00 mm / 49.60 in
Weight Capacity (static load)	2500.00 kg / 5500 lbs
Weight Capacity (dynamic load):	2500.00 kg / 5500 lbs
Minimum Mounting Depth	100.00 mm / 3.93 in
Rack Height	42U
Color	Black
Units per Pallet	1
Vertical Posts	16 gauge
Front Door	18 gauge
Rear Door	18 gauge
Roof	x
EIA Mounting Rails	14 gauge
Side Panel	18 gauge

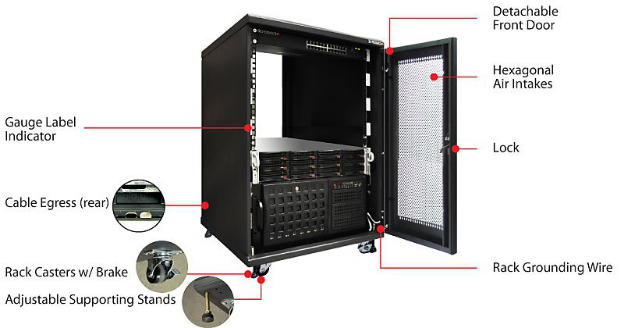

14U Rack units; supports 19" rackmount servers with regular square mounting holes
Ideal for office environments - 30.64 inches high, same height as regular office furniture
Lockable front door and rear door, provides extra security for IT facilities
Mobility - Casters with brakes, easy to move
Stability - Supporting posts on the four corners
Detachable "front door and rear door" design, easy for maintenance
Re-useable and environmental friendly shipping box
Rear door included
